SCARLET
Scarlet is our new heated cabinet designed to keep food warm.
The creation of a food display warmer represents our answer to the food market trends, a market where the food-to-go sector has been growing steadily for over a decade.
New technologies and resources make our daily life’s rhythm frenetic. In this sense, eating habits have been changing as well. Customers are always more acquainted with the idea of quick, delicious and ready to go meals. For this reason, some of the most growing restaurant chains have been implementing grab-and-go equipment in their spaces and creating an environment where the main priority is, not only the quality of read to use meals, but also the celerity of the service.
Scarlet has thus been born in order to satisfy those retailers who are in need of a cabinet that, as all Fogal products, can be personalized in different ways depending on the type of food and on the displaying needs. A versatile product, equipped with excellent technology that keeps prepared meals warm and allows the final customer to a quick and safe purchase experience.
Scarlet – our new heated cabinet from Fogal Refrigeration on Vimeo.

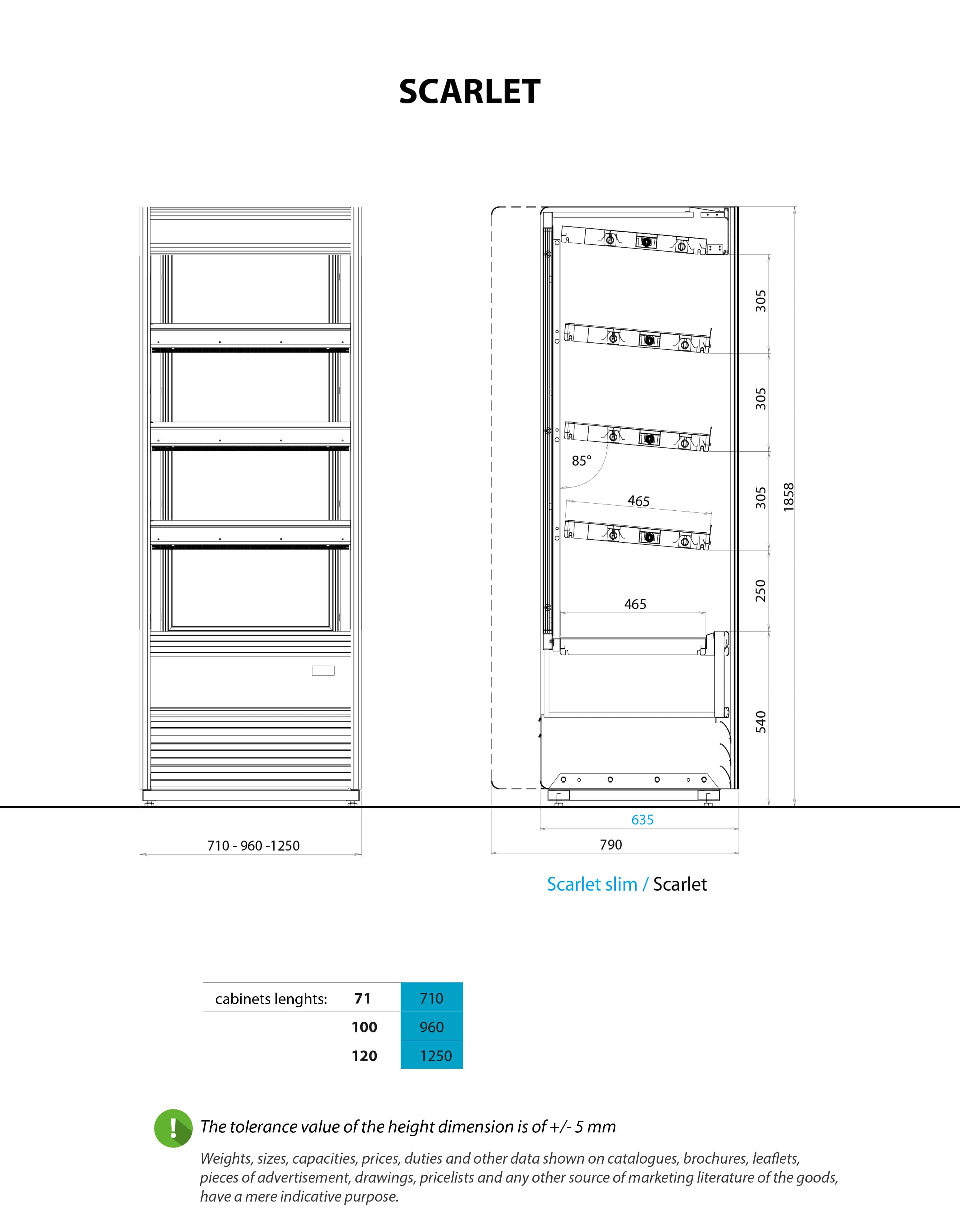

| DIMENSIONS |
|
nominal lengths/real lenghts (mm) for special lengths, please get in touch with our sales dpt. 71 ( 710 ) 100 ( 960 ) 120 ( 1250 ) |
| plug-in √ |
| depth mm |
| standard: 790
slim: 635 |
| plug-in √ |
| height mm |
| 1855 |
| plug-in √ |
| front height mm |
| 540 |
| plug-in √ |
| STRUCTURE |
| steel and wood water-repellent chipboard framework |
| plug-in √ |
| solid ends |
 |
| plug-in √ |
| panoramic ends |
 |
| plug-in √ |
| on demande |
| hinged glass doors
(low-emission thermal glass closing system designed by Fogal Refrigeration) |
 |
| plug-in √ |
| on demande |
| Lower grille available in all RAL colors |
 |
| plug-in √ |
| customizable lower front panel |
 |
| plug-in √ |
| on demande |
| Rear loading doors (available with full doors or glass doors and white or aluminium frame) |
 |
| plug-in √ |
| on demande |
| adjustable feet |
 |
| plug-in √ |
| castors for an easier movement of the cabinet |
 |
| plug-in √ |
| on demande |
| base shelf + three fixed and 5° tilted shelves (with ticket strips) |
| plug-in √ |
| TECNOLOGY |
| plug – in |
| maximum product storage temperature 65°C |
| plug-in √ |
| Heating system based on quartz halogen lamps |
| plug-in √ |
| The operating principle follows the three principles of the thermodynamics: radiation, thermal conduction and convection |
| plug-in √ |
| No forced hot air circulation |
| plug-in √ |
| Independent shelves thermal control |
| plug-in √ |
| Automatic regulation of each shelf heating power |
| plug-in √ |
| PLC controlled system |
| plug-in √ |
| Two-lines multi-colored LED digital control panel display. Intuitive and pleasant touch screen interface (integrated general On/Off key) |
 |
| plug-in √ |
| Single phase supply voltage 230v ac |
| plug-in √ |
| Safety manual reset thermostat for the automatic switching off of the system |
| plug-in √ |
| Lamps operation check at system start-up and automatic malfunction warning signal |
| plug-in √ |
| Self recording of system operating hours |
| plug-in √ |
| Reduced operating costs thanks to smart power |
| plug-in √ |
| AVAILABLE CLADDINGS |
| with aluminium trim and ABS inner profile
black and dark grey color on demand |
 |
| plug-in √ |
| internal and external visible parts epoxy powder coated – white color |
| plug-in √ |
| polished or satined stainless steel internal and external parts
Note: on stainless steel cabinets, some components are made of galvanized or powder coated plate |
| plug-in √ |
| on demande |
| internal and external RAL color coating |
 |
| plug-in √ |
| on demande |
| wide range of laminated external cladding |
 |
| plug-in √ |
| on demande |
| wide range of OPTIONS available |
| plug-in √ |
| on demande |
